RF RECEIVER AND REMOTE TOUCH AND BUTTON RGB 12-24V CONSTANT VOLTAGE 180W(12V) AND 360W(24V) INTEGRAL

Part Number:

ILRC009

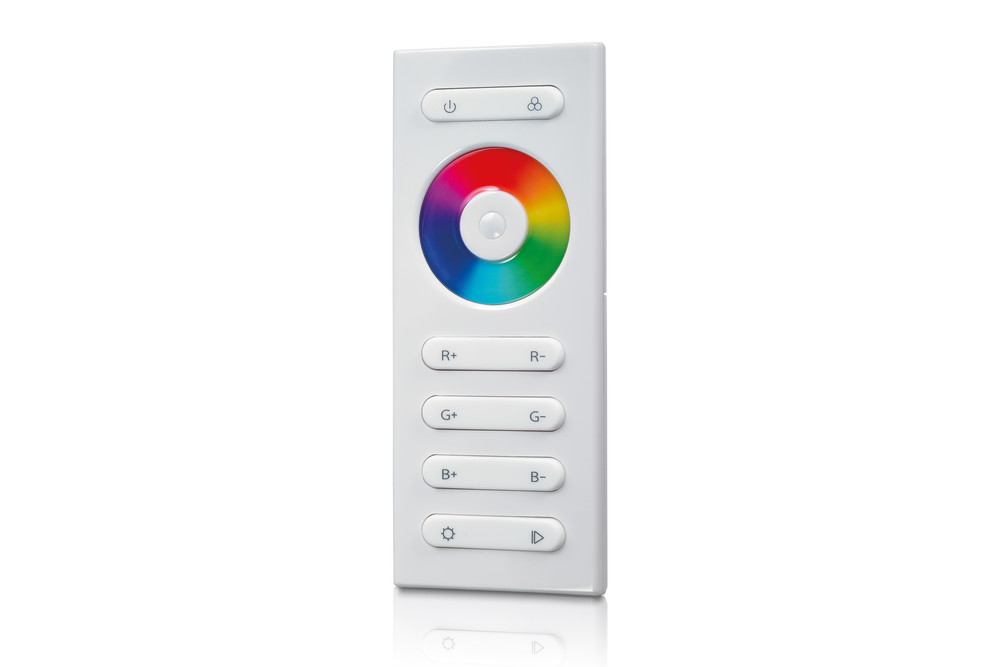

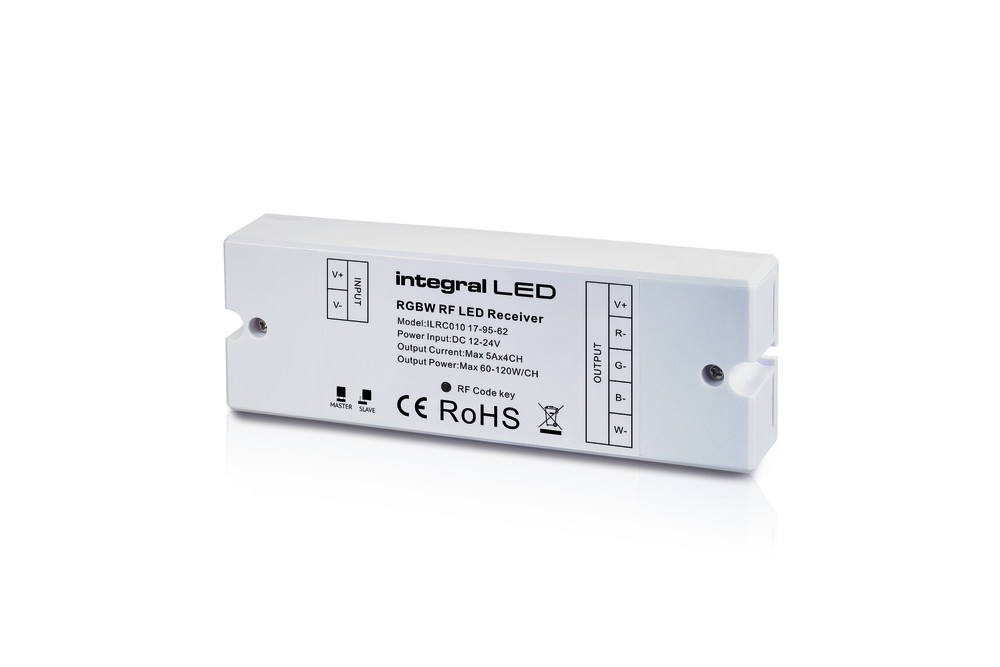

This RGB colour RF (Radio Frequency) receiver and touch/button remote control can be used with Integral RGB colour changing strips. With the RGB colour changing remote control, you can easily change the strip colour by choosing the colour area on the central touch circle or pressing the mode button for 10 colour modes, control the brightness and change the speed when choosing the dynamic light mode. You can also control the Red, Green and Blue colour individually by pressing the R+ or R-, G+ or G- and B+ or B- buttons.

An easy-to-follow installation and operating guide can be downloaded from our website. 3 x AAA batteries (not included) are required for remote.

Product Feature 1:
Suitable for controlling RGB colour changing strip
Product Feature 2:
Max 30M Remote Distance
Product Feature 3:
DC12-24V Power Input
Product Feature 4:
5A x 3 channels Max 15A Current Load
Product Feature 5:
180W (12V) / 360W (24V) Power Output
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 149168
Barcode 5055788229537
Category Strips
Range Name RGB
Product Type Controllers for strips
Material PCB, Plastic Shell
Handheld or Wall Mount Handheld
Zones 1
Voltage Range (v) 45627
Dimming Dimmable
Driver Included No
Electric Current DC
EN EN-60950-1
LVD Certified Yes
EN EN-60950-1
LVD Certified Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 40
Package Weight (g) 185
Package Length (mm) 150
Package Width (mm) 50
Package Depth (mm) 40

Product Specification Sheet

Safety Guides

Installation Guides
