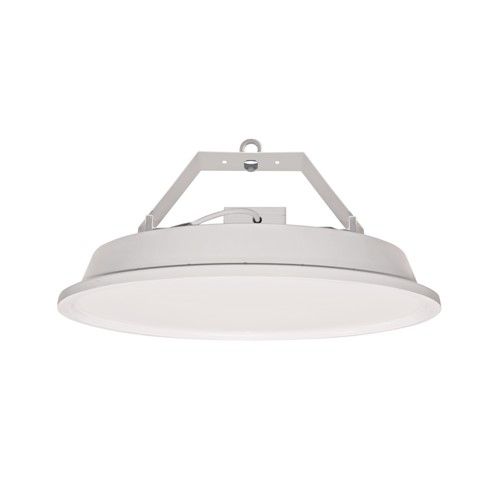

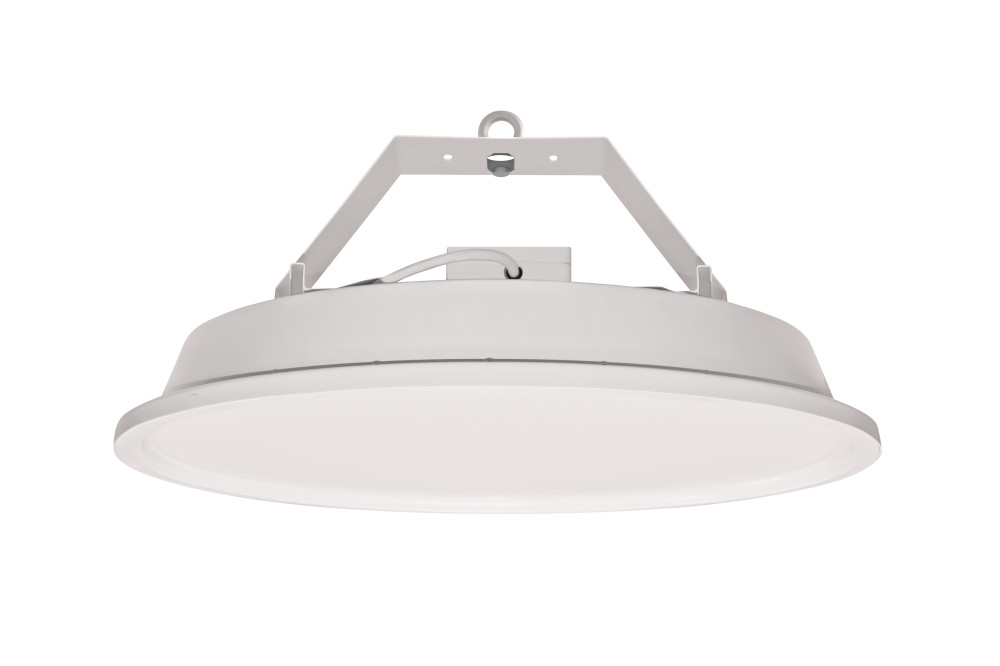

SPACELUX CIRCULAR HIGH BAY 1PK IP65 9600LM 80W 5000K 120LM/W 110 BEAM DIMMABLE INTEGRAL
Part Number:
ILHBG020
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
The Integral LED Spacelux High Bay is a major step forward for LED high bay lighting that needs to be seen (or rather held) to be believed. While the tough body of this luminaire carries an impressive IK08 rating it weights less than 4kg!
- Product Feature 1:
- Low Weight
- Product Feature 2:
- 110 Degree Beam Angle
- Product Feature 3:
- 120lm/w
- Product Feature 4:
- Daylight
- Product Feature 5:
- 5 Year Warranty
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
Quick Order Code | 214368 |
---|---|
Barcode | 5055788240044 |
Category | Luminaires |
Range Name | SPACELUX |
Type | Circular |
Product Type | Circular High Bay |
Product Body Finish | Matt white |
Market Segment | Commercial indoor and outdoor, Industrial indoor and outdoor |
Finish | Matt White |
Warranty (Years) | 5 |
Physical Data
Emergency Option | No |
---|---|
Linkable | No |
Product Weight (g) | 3350 |
Diameter (mm) | 420 |
Optic | Polycarbonate diffuser |
Material | Aluminium, Polycarbonate |
Construction | Aluminium heat-sink, PC injection moulded driver case |
Bulb or Luminaire Shape | Round |
Luminaire Fixing | Suspended |
Mounting Type | Rear Cable Entry |
Placement / Application | Indoor, Outdoor, General Lighting |
Light Data
Energy Efficiency Label (Image) | ILHBG020_EU_label |
---|---|
Luminous Flux in Lumens (lm) | 9600 |
Luminous efficacy (lm/W) | 120 |
Correlated Colour Temperature (CCT) (K) | 5000 |
Colour Temperature Name | Daylight |
Beam Angle | 110 |
Colour Rendering Index (CRI) | 80 |
Frequency Range (Hz) | 50/60 |
Instant on (Less than 1 second) | Yes |
LED Type | Surface mounted device (SMD) |
Lifetime (hours) | 50000 |
Switching Cycles | 25000 |
Useful Lumens (lm) | 9600 |
Electrical Data
Power Consumption (W) | 80 |
---|---|
Power Factor | 0.96 |
Voltage Range (v) | 220-240V AC |
Input Voltage (V) | 220-240 |
Dimming | Dimmable |
Driver Included | Yes |
Electric Current | AC |
EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
LVD Certified | Yes |
Environmental
EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
---|---|
LVD Certified | Yes |
CE RoHS | Yes |
EU Luminaire | L |
Hg 0% (Mercury Free) | Yes |
IK Rating (Impact Protection) | IK08 |
IP Rating (Ingress Protection) | IP65 |
Lowest Operating Temperature (°C) | -10 |
Maximum Operating Temperature (°C) | 40 |
Packaging
Package Weight (g) | 2400 |
---|---|
Package Length (mm) | 525 |
Package Width (mm) | 170 |
Package Depth (mm) | 638 |
