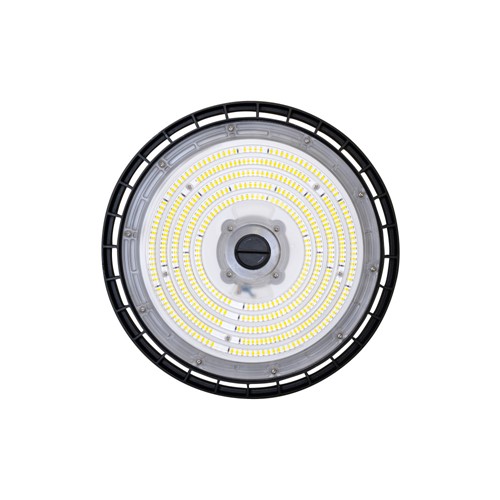

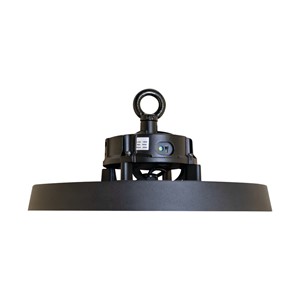

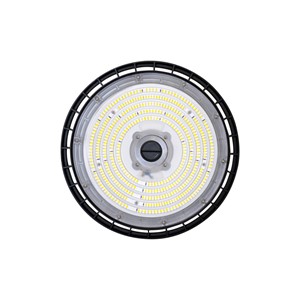

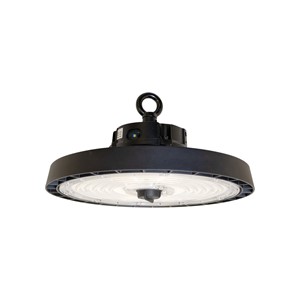

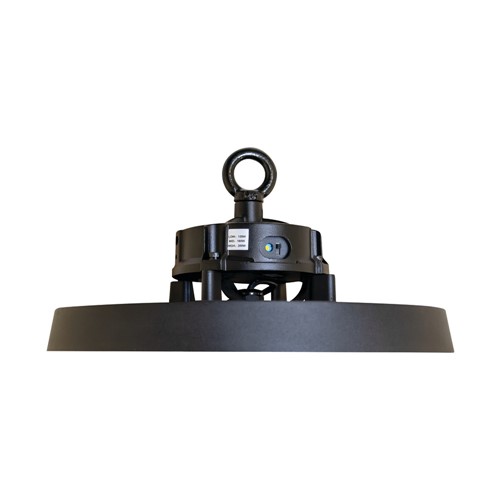

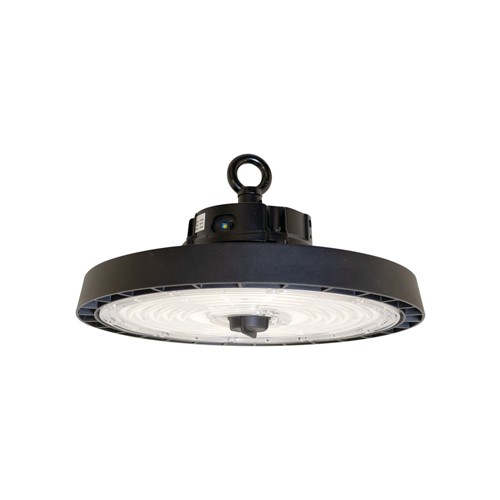

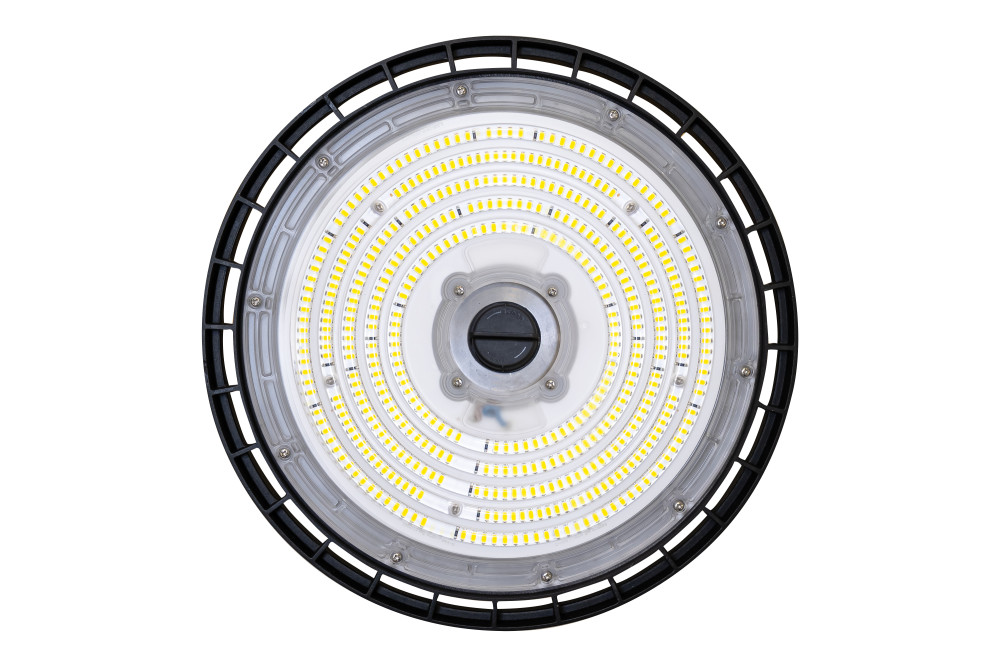

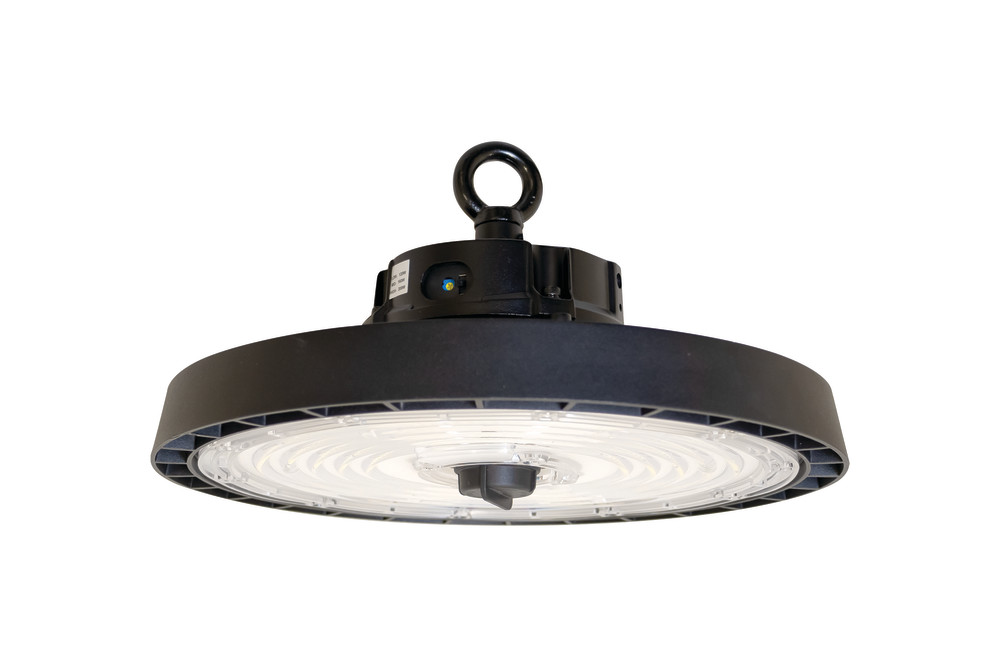

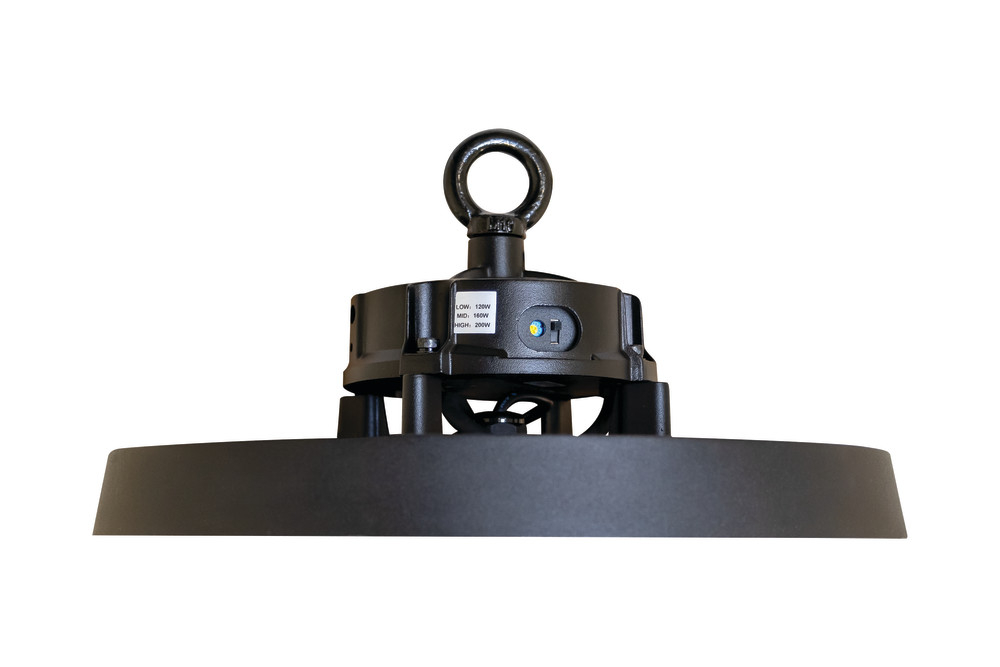

PERFORM PRO MAX CIRCULAR HIGH BAY 120W/160W/200W 70CRI 190LM/W IP65 IK08 38000LM 4000K 90° DIMMABLE ZHAGA 18 SENSOR READY
Part Number:
ILHBC352

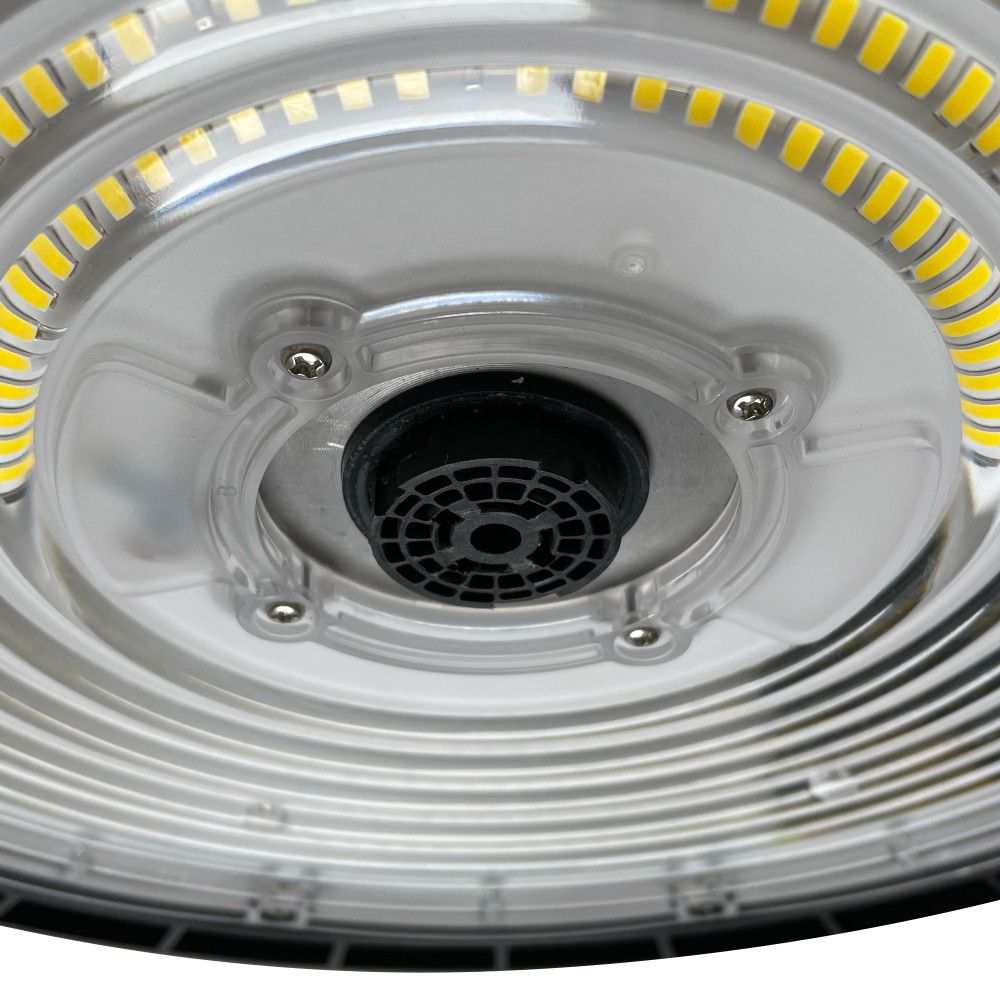

Highly efficient smart high bay with an integrated Zhaga 18 socket for plug & play modules purchased separately (suggested products below): MW and PIR sensors with remote control for programming and pre-set selection, and Casambi Bluetooth mesh to control dimming, schedules, connection with other luminaires and more via app. Ideal for the most demanding industrial environments.
See the Zhaga 18 plug & play modules in the suggested products section below.
- Product Feature 1:
- Sensor Ready
- Product Feature 2:
- 5 Year Warranty
- Product Feature 3:
- 190lm/W
- Product Feature 4:
- 90° beam angle
- Product Feature 5:
- 4000K
- Product Feature 6:
- IP65
- Product Feature 7:
- IK08
- Availability:
-
100+
More stock due in on 20/07/2024
Suggested products
Details
| Quick Order Code | 901072 |
|---|---|
| Barcode | 5055788285083 |
| Range Name | Perform PRO MAX |
| Type | Circular |
| Product Type | Circular High Bay |
| Market Segment | Commercial indoor, Industrial indoor |
| Features | 190lm/W |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Depth (mm) | 175 |
| Product Weight (g) | 2900 |
| Diameter (mm) | 305 |
| Optic | Polycarbonate |
| Material | Aluminium, Polycarbonate |
| Construction | Aluminium heat-sink and driver case |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Suspended |
| Mounting Type | Suspended |
| Placement / Application | Indoor, Commercial & Industrial |
| Typical Mounting Height | 4M+ |
Light Data
| Luminous Flux in Lumens (lm) | 38000 |
|---|---|
| Luminous efficacy (lm/W) | 190 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 90 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 28/35 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 15000 |
Electrical Data

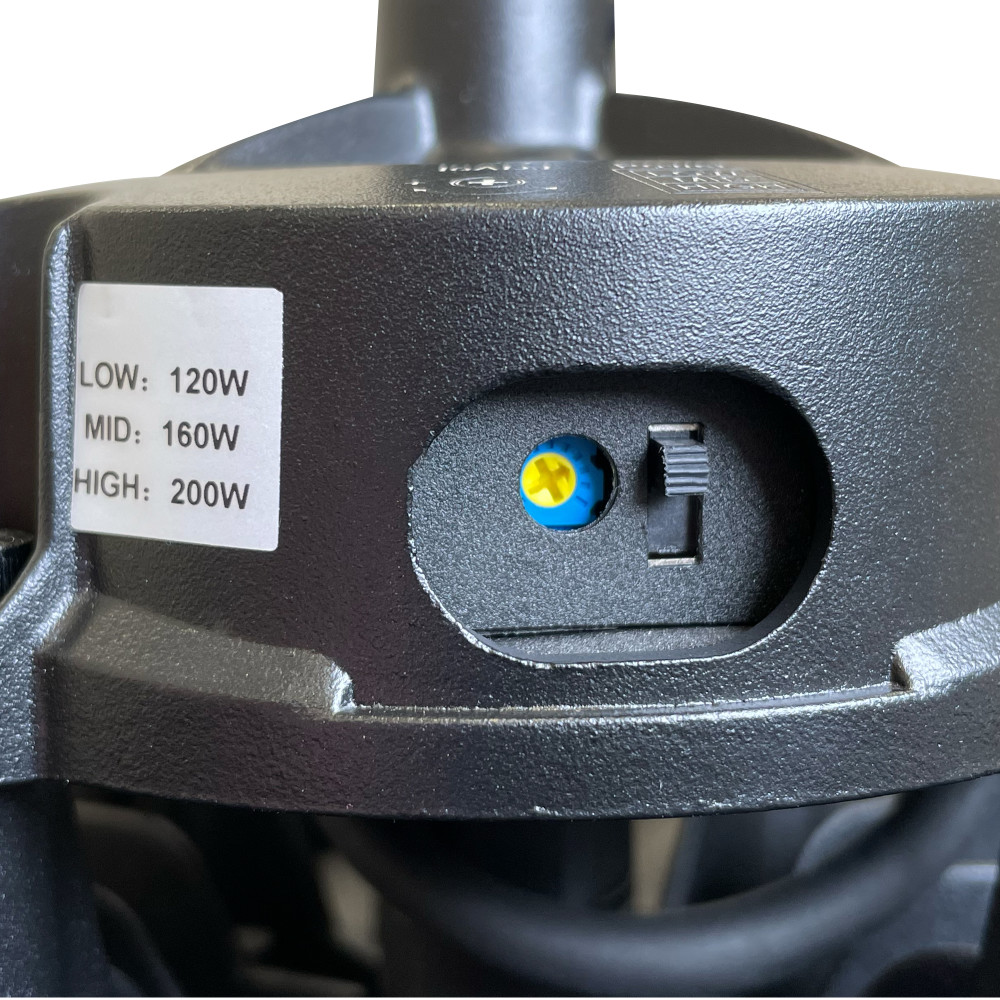

| Power Consumption (W) | 120 / 160 / 200 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
Environmental
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
|---|---|
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -30 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 4000 |
|---|---|
| Package Length (mm) | 360 |
| Package Width (mm) | 360 |
| Package Depth (mm) | 170 |
| Qty per euro pallet | 66 |
