VALUE+ PANEL 600X600 3800LM 38W 4000K DRIVER NOT INCLUDED 100LM/W EDGELIT INTEGRAL
Part Number:
ILP6060E008
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.

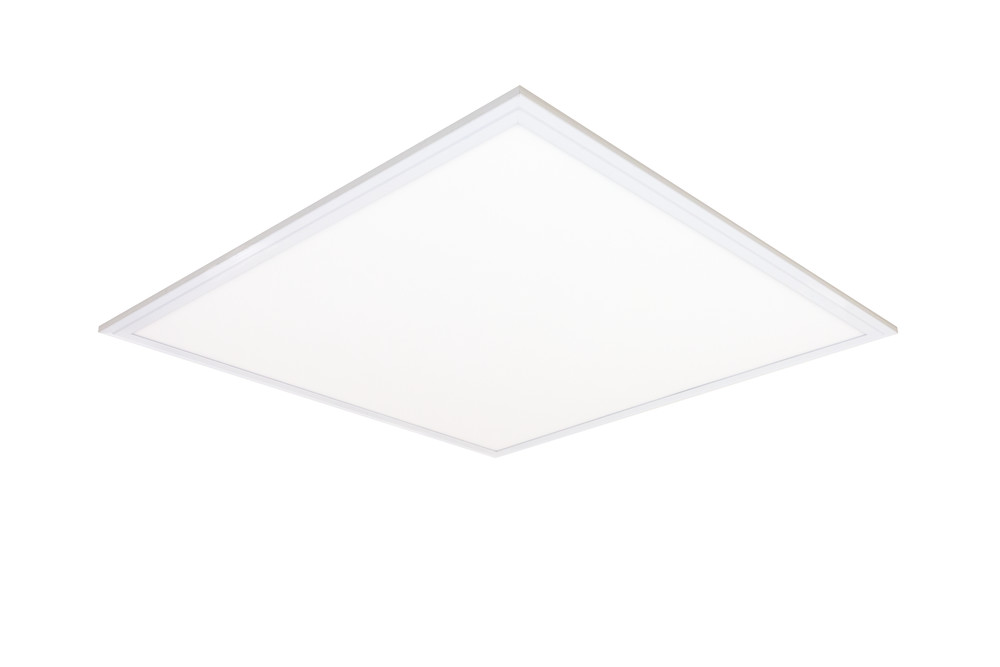

This is a 38W, 3800lm 600x600 Integral LED Value+ panel. It delivers a uniform cool white light across the whole of its surface. The high level of efficacy (100lm/W) offers savings in running cost against traditional 72W fluorescent fittings as well as many other LED panels.
The panels are an ideal solution for many applications. No driver is supplied with this panel.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 3800 Lumens
- Product Feature 3:
- 100lm/W
- Product Feature 4:
- 3 Year warranty
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
26
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
Quick Order Code | 150077 |
---|---|
Barcode | 5055788229711 |
Category | Panels |
Range Name | Value+ |
Product Type | 600 x 600 |
Product Body Finish | Matt white |
Market Segment | Commercial indoor |
Warranty (Years) | 3 |
Physical Data
Emergency Option | Optional Conversion Kit |
---|---|
Emergency Category | Panels |
Product Length (mm) | 596 |
Product Depth (mm) | 8.2 |
Product Width (mm) | 596 |
Product Weight (g) | 2000 |
Optic | Opal diffuser |
Material | Aluminium, Steel, PS Diffuser |
Construction | extruded Aluminium, steel back, LGP sheet and PS diffuser |
Luminaire Fixing | Recessed in ceiling grid, surface mounted or suspended (additional surface mounted or suspension kit required) |
Placement / Application | Indoor, General Lighting |
Light Data
Luminous Flux in Lumens (lm) | 3800 |
---|---|
Luminous efficacy (lm/W) | 100 |
Peak Intensity (Cd) | 1004 |
Correlated Colour Temperature (CCT) (K) | 4000 |
Colour Temperature | 4000K - Cool White |
Colour Temperature Name | Cool White |
Beam Angle | 110 |
Colour Rendering Index (CRI) | 80 |
Frequency Range (Hz) | 50/60 |
Instant on (Less than 1 second) | Yes |
LED Size (mm) | 2835 |
LED Type | Surface mounted device (SMD) |
Lifetime (hours) | 30000 |
Lighting Method | Edge-lit |
Switching Cycles | 25000 |
Electrical Data
Power (W) | 38 |
---|---|
Power Consumption (W) | 38 |
Voltage Range (v) | 220-240 |
Wattage equivalent (W) | 86.4 |
Amperage (mA) | 835 |
Dimming | Dimmable |
Driver Included | No |
Electric Current | AC |
EN | EN-60598 |
LVD Certified | Yes |
Environmental
EN | EN-60598 |
---|---|
LVD Certified | Yes |
CE RoHS | Yes |
Hg 0% (Mercury Free) | Yes |
IP Rating (Back/Recessed side) | IP20 |
IP Rating (Ingress Protection) | IP20 |
Lowest Operating Temperature (°C) | -10 |
Maximum Operating Temperature (°C) | 40 |
TP rating | None |
Packaging
Package Weight (g) | 3300 |
---|---|
Package Length (mm) | 686 |
Package Width (mm) | 640 |
Package Depth (mm) | 40 |
Qty per euro pallet | 75 |
