80W 0.3M VECTOR MAX LINEAR HIGH BAY IP44 IK10 14400LM 180LM/W 4000K 30x70° BEAM ZHAGA 18 PLUG-N-PLAY
Part Number:
ILHBL301

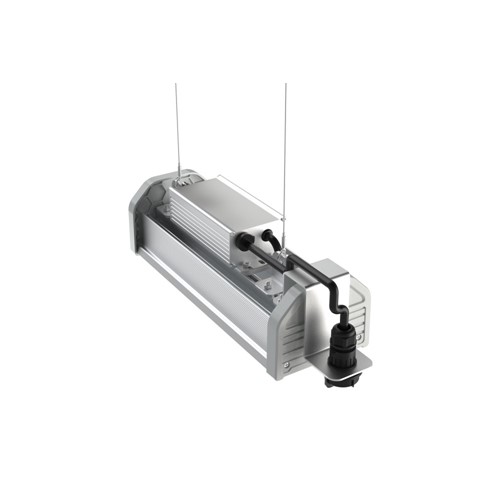

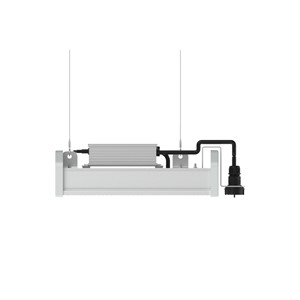

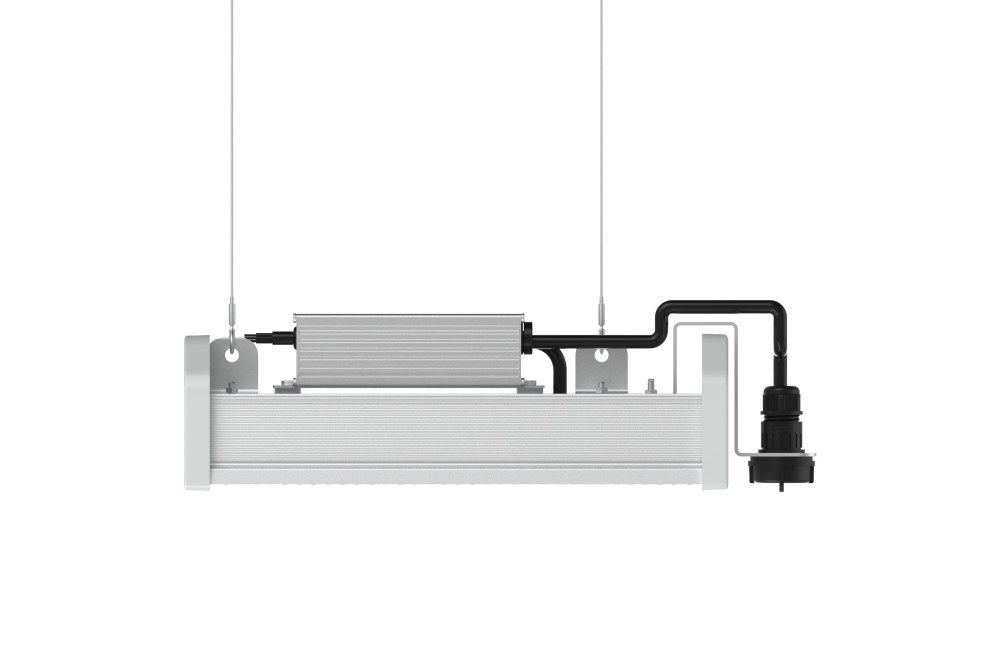

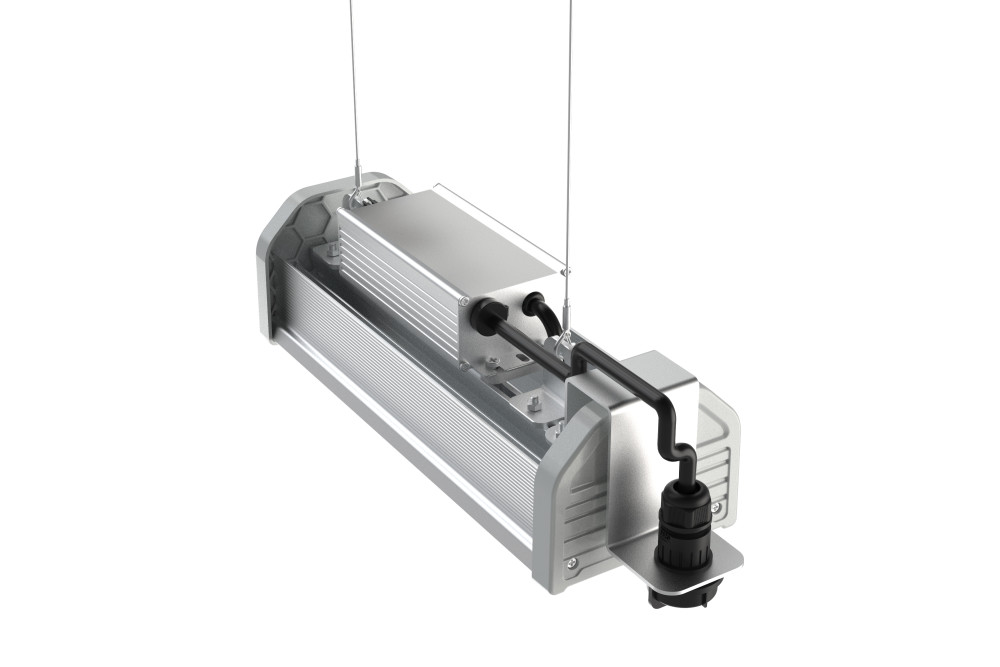

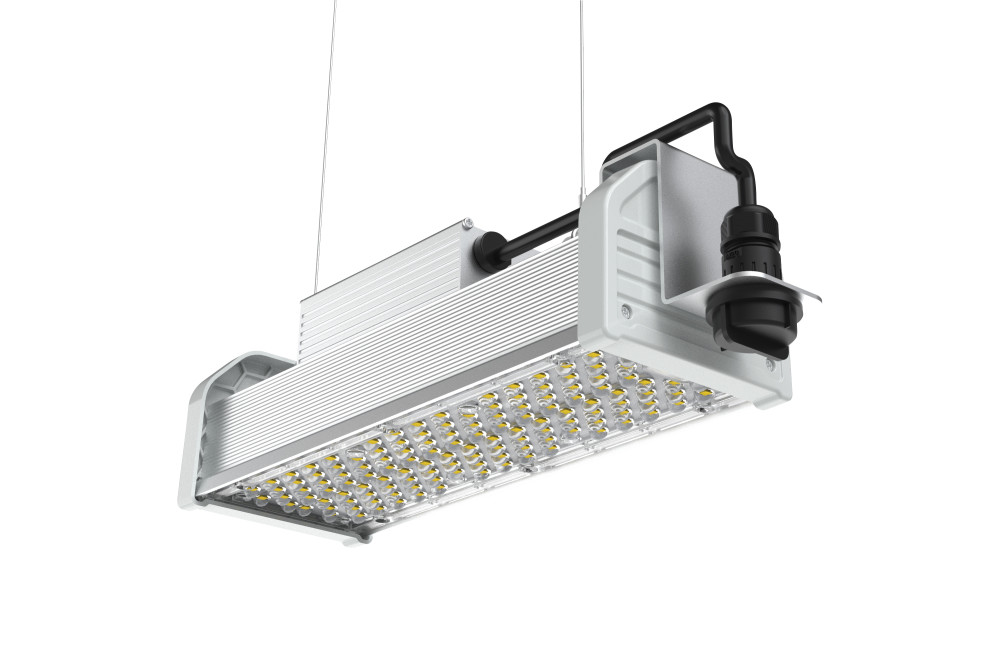

The Integral LED Vector Max Linear High Bay is built to last in the most demanding industrial environments. Compact, powerful and efficient, the Vector Max offers a high lumen output for its size at an incredibly efficient 180lm/W. IP44 ingress protection rated and IK10 shock-resistance make this rugged luminaire ideal for warehouses, production facilities, factories and other industrial environments.
The 30x70° asymmetrical beam angle makes this light perfect for long and narrow spaces like in between warehouse racking.

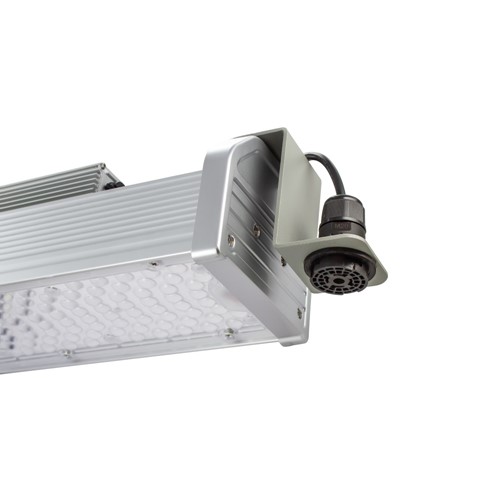

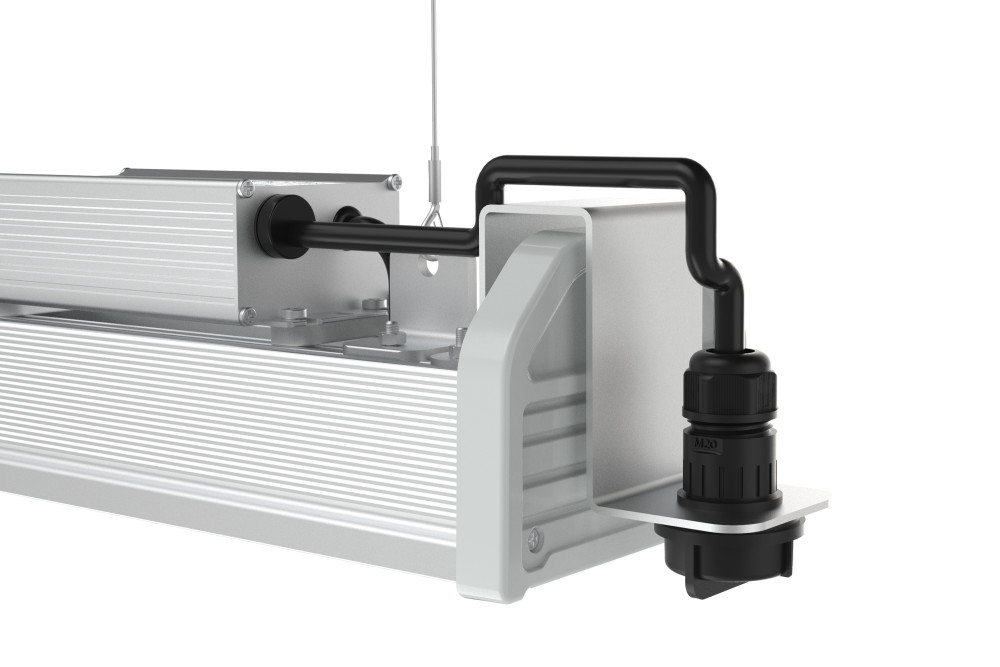

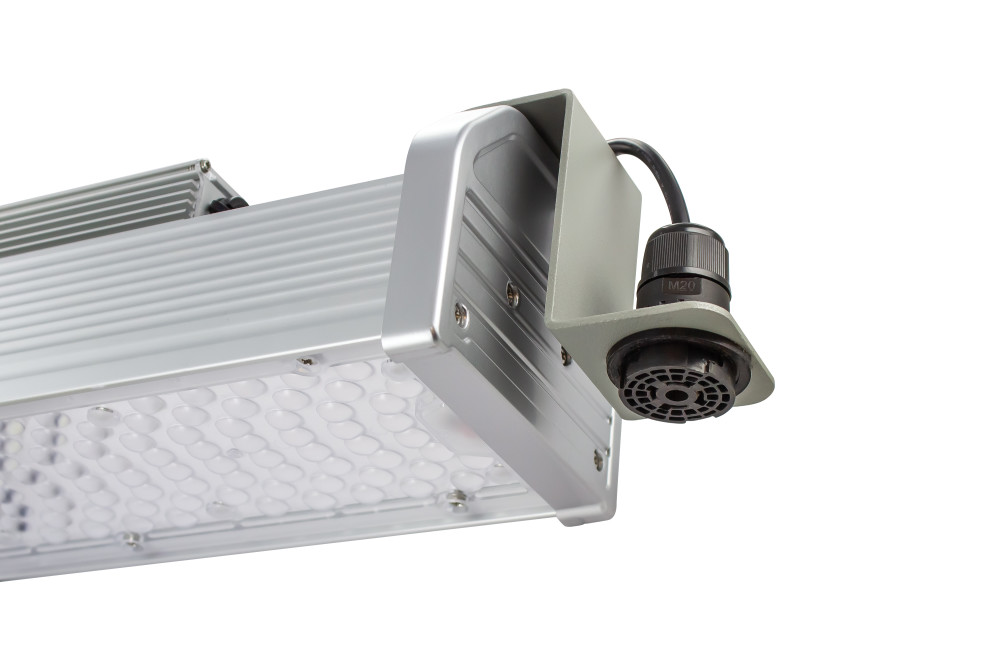

The Vector Max features a Zhaga 18 socket for plug and play control and sensor add ons, including Casambi, PIR and microwave. Surface mounting brackets sold separately. See related products for accessory options.
- Product Feature 1:
- 14400lm
- Product Feature 2:
- Zhaga 18 plug n play
- Product Feature 3:
- 4000K
- Product Feature 4:
- 180lm/W
- Product Feature 5:
- Class I
- Product Feature 6:
- 5 Year Warranty
- Product Feature 7:
- IP44
- Product Feature 8:
- IK10
- Availability:
-
100+
More stock due in on 24/07/2024
Suggested products
Details
| Barcode | 5055788284741 |
|---|---|
| Category | Luminaires |
| Range Name | Vector Max |
| Type | Linear |
| Product Type | Linear High Bay |
| Product Body Finish | Silver |
| Market Segment | Commercial indoor, Industrial indoor |
| Finish | Silver |
| Features | 180lm/W |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Size (in ft) | 1ft |
| Product Length (mm) | 317 |
| Product Depth (mm) | 96 |
| Product Width (mm) | 112 |
| Product Weight (g) | 2100 |
| Optic | Polycarbonate diffuser |
| Material | Aluminium |
| Construction | Aluminium |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Suspended / ceiling mounted / wall mounted |
| Placement / Application | Indoor, General Lighting |
| Typical Mounting Height | 5M |
Light Data
| Luminous Flux in Lumens (lm) | 14400 |
|---|---|
| Luminous efficacy (lm/W) | 180 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 30x70 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 47/63 Hz |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 100000 |
Electrical Data
| Power Factor | 0.95 |
|---|---|
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Protection Function | Short Circuit, overload and overheating protection on driver |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -35 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Package Weight (g) | 2500 |
|---|---|
| Package Length (mm) | 395 |
| Package Width (mm) | 125 |
| Package Depth (mm) | 120 |
