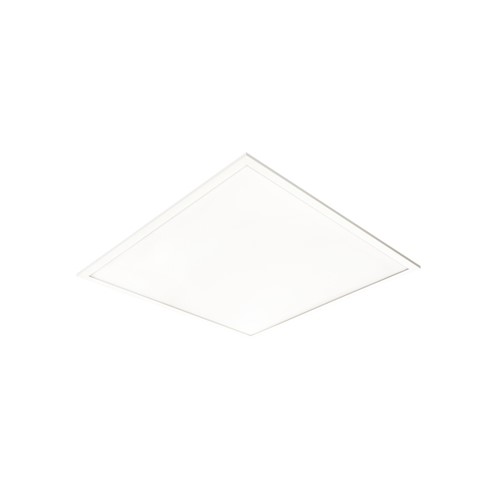

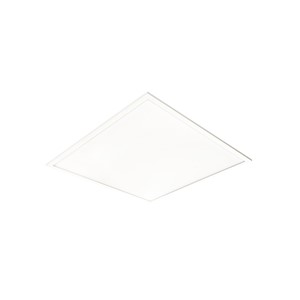

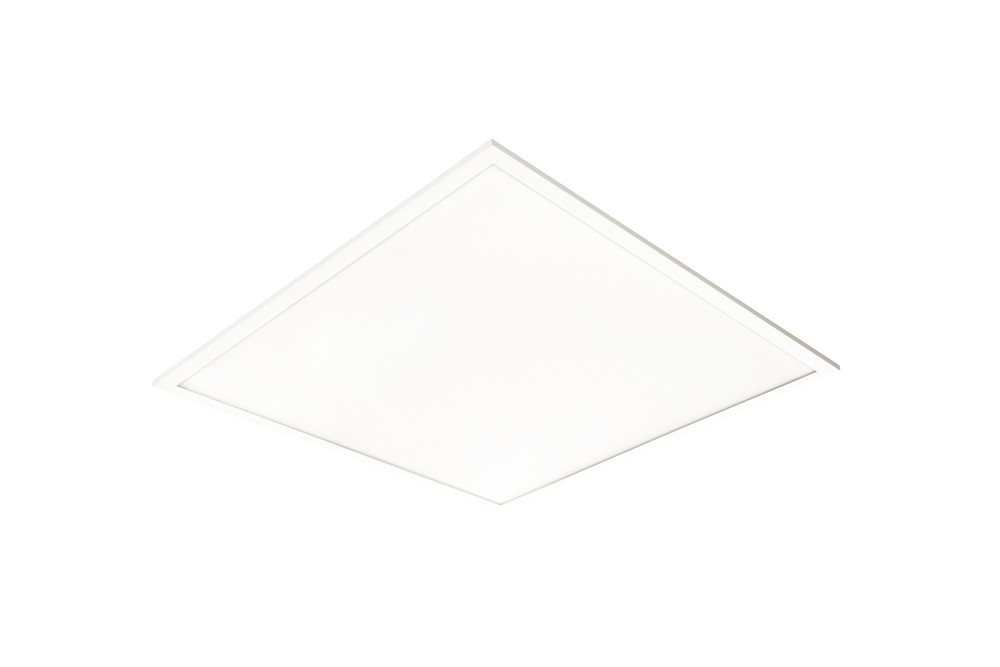

PANEL 600X600 2800LM 30W 3000K NON-DIMMABLE 93 LM/W EDGELIT INTEGRAL
Part Number:
ILP6060E010
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Product Feature 1:
- Warm white
- Product Feature 2:
- 2800 Lumens
- Product Feature 3:
- 93lm/W
- Product Feature 4:
- TP(a) rated Polycarbonate diffuser
- Product Feature 5:
- 5 Year Warranty
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 806986 |
|---|---|
| Barcode | 5055788241249 |
| Category | Panels |
| Range Name | TPa UGR<19 Advance |
| Product Type | 600 x 600 |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Features | UGR 19 |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Panels |
| Product Length (mm) | 595 |
| Product Depth (mm) | 10 |
| Product Width (mm) | 595 |
| Product Weight (g) | 2600 |
| Optic | TP(a) rated Polycarbonate diffuser |
| Material | Aluminium, Polycarbonate |
| Construction | Extruded Aluminium, Steel back, LGP sheet and PC difuser |
| Luminaire Fixing | Recessed in ceiling grid, surface mounted, or suspended (additional surface mounted or suspention kit requied) |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 2800 |
|---|---|
| Luminous efficacy (lm/W) | 93 |
| Peak Intensity (Cd) | 1340 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000K - Warm White |
| Colour Temperature Name | Warm White |
| Beam Angle | 90 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 40000 |
| Lighting Method | Edge-lit |
| Switching Cycles | 12500 |
| Unified Glare Rating (UGR) | < 19 |
Electrical Data
| Power (W) | 30 |
|---|---|
| Power Consumption (W) | 30 |
| Power Factor | 0.9 |
| Wattage equivalent (W) | 86.4 |
| Amperage (mA) | 800 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
| TP rating | TP(a) |
Packaging
| Package Weight (g) | 3540 |
|---|---|
| Package Length (mm) | 700 |
| Package Width (mm) | 665 |
| Package Depth (mm) | 50 |
Safety Guide
ILP6060E010
