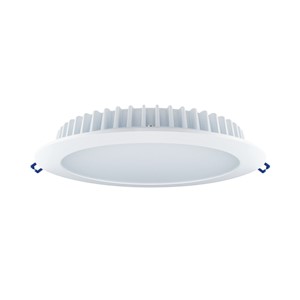

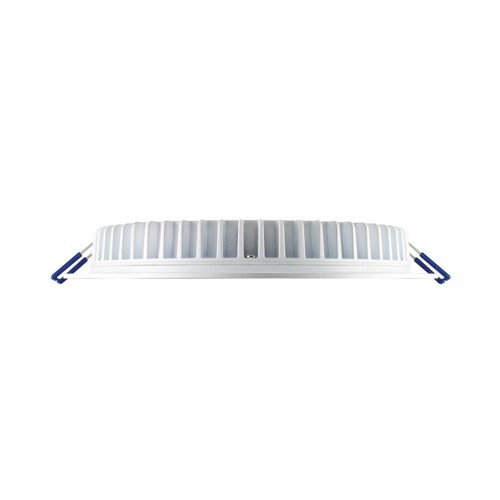

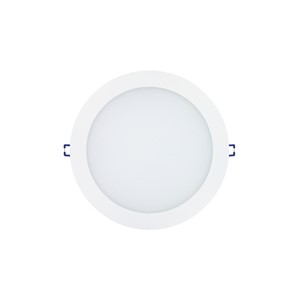

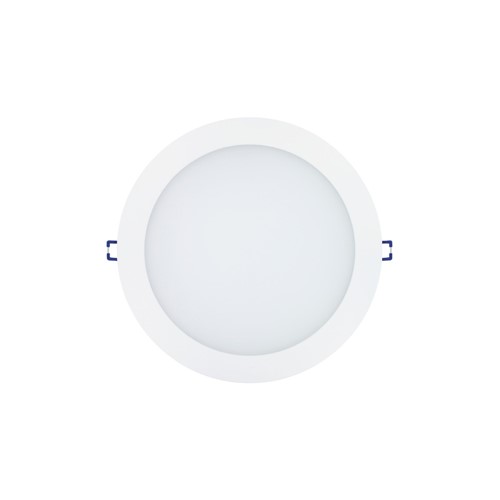

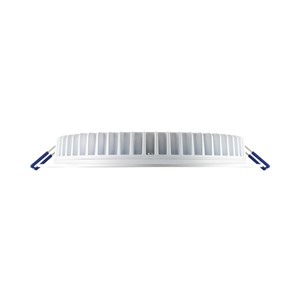

PERFORMANCE+ DOWNLIGHT 145MM CUTOUT 750LM 8W 3000K NON-DIMM 94LM/W IP54 WHITE

Part Number:

ILDL145F013

THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.


For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information


Product Feature 1:
Warm white
Product Feature 2:
750lm
Product Feature 3:
Non-Dimmable
Product Feature 4:
94lm/W

For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information

Availability:
0

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 139587
Barcode 5055788253501
Category Downlights
Range Name Performance+
Product Type LED Downlights
Product Body Finish Matt white
Market Segment Commercial indoor
Warranty (Years) 5
Emergency Option Optional Conversion Kit
Emergency Category Downlights
Product Depth (mm) 26
Product Weight (g) 350
Diameter (mm) 160
Optic Polycarbonate diffuser
Material Aluminium, Polycarbonate
Overall diameter (mm) 160
Construction Die cast Aluminium heat-sink and body, Polycarbonate sheet diffuser
Cut Out Diameter (mm) 145
Luminaire Fixing Recess mounted
Placement / Application Indoor, General Lighting
Luminous Flux in Lumens (lm) 750
Luminous efficacy (lm/W) 94
Peak Intensity (Cd) 400
Correlated Colour Temperature (CCT) (K) 3000
Colour Temperature 3000K - Warm White
Colour Temperature Name Warm White
Beam Angle 90
Colour Rendering Index (CRI) 80
Compatible Dimmers Varilight JQP401W
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 20000
Power (W) 8
Power Consumption (W) 8
Power Factor 0.5
Voltage Range (v) 220-240
Wattage equivalent (W) 18
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP54
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40
Package Weight (g) 400
Package Length (mm) 170
Package Width (mm) 170
Package Depth (mm) 65
