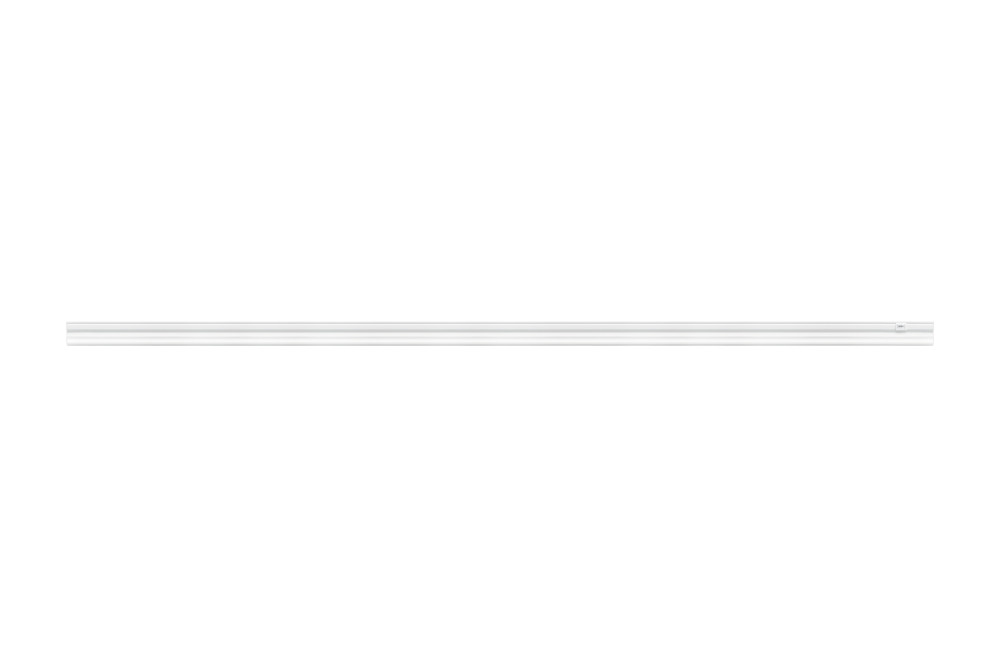

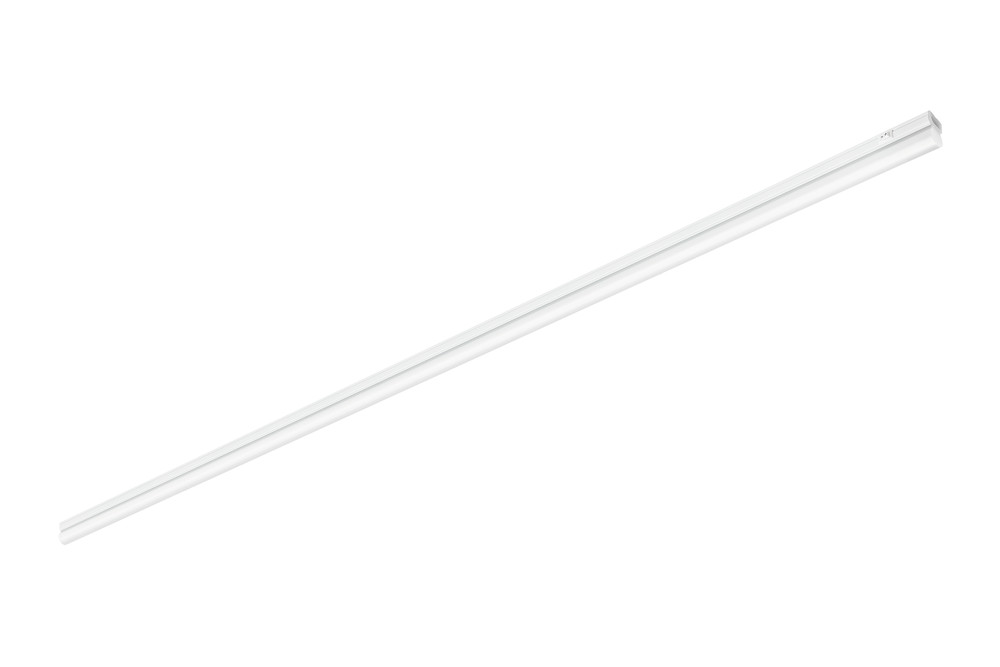

CABINET BATTEN SWITCHABLE COLOUR 1250LM 16W 2700/4000K 140 BEAM 90LM/W 1170MM 4FT LINKABLE NON-DIMM INTEGRAL
Part Number:
ILCLB016
PLEASE CONTACT OUR SALES TEAM TO PLACE AN ORDER.
The Colour Switching Cabinet Batten let's you easily switch between Cool White task lighting or Warm White lighting for dining or entertaining. A three-way switch on the unit gives you direct control over the ambience of your kitchen or other under-cabinet environments, such as a study or home office. These battens are linkable, making it easier to install a series of battens in large furnishings.
- Product Feature 1:
- Easily switch between Warm White and Cool White
- Product Feature 2:
- Linkable for easy installation
- Product Feature 3:
- 1440lm
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
Quick Order Code | 227683 |
---|---|
Barcode | 5055788241911 |
Category | Luminaires |
Range Name | Colour Switching |
Type | Single |
Product Type | Battens |
Product Body Finish | Matt white |
Market Segment | Commercial & Industrial |
Finish | Matt White |
Features | Variable Colour Temperature |
Warranty (Years) | 3 |
Physical Data
Emergency Option | No |
---|---|
Size (in ft) | 4ft |
Linkable | No |
Product Length (mm) | 1170 |
Product Depth (mm) | 36 |
Product Width (mm) | 23 |
Product Weight (g) | 290 |
Optic | Polycarbonate diffuser |
Material | Polycarbonate |
Construction | Injection moulding |
Bulb or Luminaire Shape | Linear |
Luminaire Fixing | Ceiling mounted |
Mounting Type | Side Conduit Entry |
Placement / Application | Indoor |
Light Data
Energy Efficiency Label (Image) | ILCLB016_EU_label |
---|---|
Luminous Flux in Lumens (lm) | 1440 |
Luminous efficacy (lm/W) | 90 |
Correlated Colour Temperature (CCT) (K) | 2700-4000K |
Colour Temperature Name | Warm White / Cool White |
Beam Angle | 140 |
Colour Rendering Index (CRI) | 80 |
Frequency Range (Hz) | 50/60 |
Instant on (Less than 1 second) | Yes |
LED Type | Surface mounted device (SMD) |
Lifetime (hours) | 35000 |
Switching Cycles | 100000 |
Useful Lumens (lm) | 1440 |
Electrical Data
Power Consumption (W) | 16 |
---|---|
Power Factor | 0.9 |
Voltage Range (v) | 220-240 |
Input Voltage (V) | 220-240 |
Dimming | Non-Dimmable |
Driver Included | Yes |
Electric Current | AC |
LVD Certified | Yes |
Environmental
LVD Certified | Yes |
---|---|
CE RoHS | Yes |
New Energy Rating | F |
EU Luminaire | L |
Hg 0% (Mercury Free) | Yes |
IK Rating (Impact Protection) | IK06 |
IP Rating (Ingress Protection) | IP20 |
Packaging
Package Weight (g) | 410 |
---|---|
Package Length (mm) | 1180 |
Package Width (mm) | 50 |
Package Depth (mm) | 40 |
